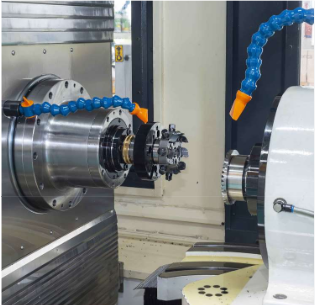

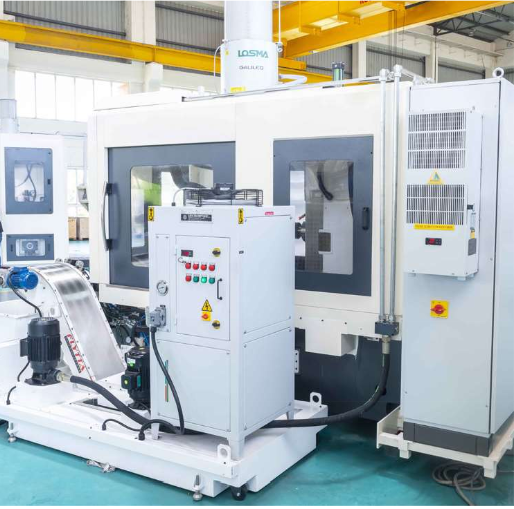

The machine is equipped with Direct drive technology in spindle and work head for high speed gear cutting along with a quick tool change mechanism using HSK-C63 adapter to enhance productivity, accuracy and reduce overall cycle time. The machine is also equipped with Composite Epoxy filling UCRIDE ® technology at suitable regions to support damping and reduce vibrations, hence, enabling higher precision.
| DESCRIPTION | UNITS | VALUE |
|---|---|---|
| CAPACITY | ||
| Max. Work Piece Diameter (spiral angle of 35°, using 9” cutter) | mm | 325 |
| Max. Teeth Depth | mm | 10 |
| Max. Face Width | mm | 50 |
| Max. Ratio | - | 4:1 |
| No. of Teeth | nos | 5 – 200 |
| Cutter Diameter | - | 5” – 6” – 7 ½” |
| STROKES | ||
| X-Axis | mm | 420 |
| Y-Axis | mm | 380 |
| Z-Axis | mm | 320 |
| A-Axis | Degree | 5° ~ 90° |
| CUTTING SPINDLE | ||
| Speed | rpm | 300 |
| Torque | Nm | 350 |
| Type | - | Direct drive |
| Spindle Taper | - | HSK-C63 |
| WORK TABLE SPINDLE | ||
| Speed | rpm | 60 |
| Rated Torque | Nm | 350 |
| Clamping Torque | Nm | 2400 |
| Type | - | Direct drive |
| Work table Center bore | mm | Dia 100 for 250mm depth |
| OVERVIEW | ||
| Controller | - | SIEMENS 828D |
| Power | KVA | 20 |
| Weight of the Machine (Approx) | kg | 6500 |
| Overall dimension (Approx) - L x W x B | mm | 2500 x 2100 x 2600 |
Standard Features

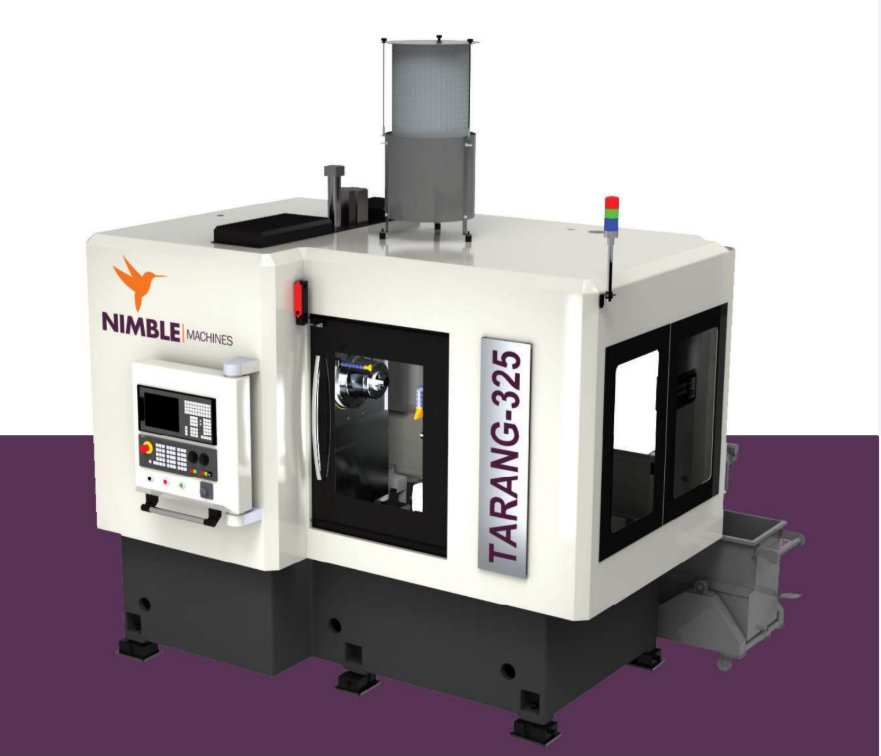

Tarang Spiral bevel gear generator is a standard 5 axis machine. It is equipped with SIEMENS 828D numerical control system and uses a sliding cutter spindle to obtain high speed backlash-free generating motion.
- 5 Axis CNC Controller
- Direct Drive technology in spindle and work head
- High clamping torque on the work table
- Remote diagnostics feature for Machine Maintenance
