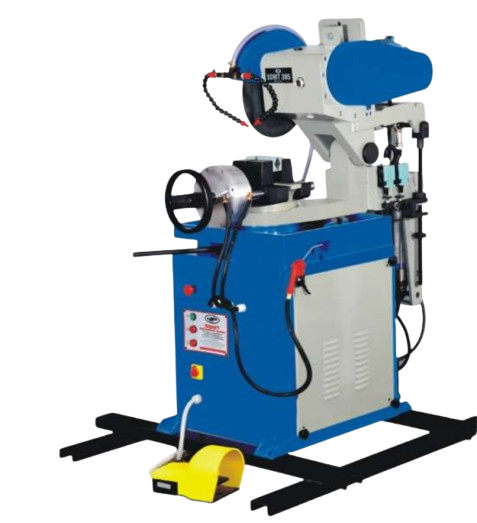

Features
- Newly designed Heavy Duty Gearbox with all hardened and ground helical gears
- Zero backlash for life ensuring smooth cutting even under heavy load
- Perfectly suitable for SS pipe and high carbon tube cutting with maximum blade life
- Semi-automatic operation – Auto clamp, auto cut, manual feed with matrix stopper
- Feed system: Hydro-pneumatic clamping with pneumatic operation
- Optional VFD fitting for variable RPM and overload interlock protection
- Optional input pneumatic pressure interlock
| Main Motor HP | 3 HP / ABB Make |
| Coolant Motor | 0.1 HP |
| Output RPM | 35 / 90 RPM |
| Total Weight | 600 Kg |
| Dimensions (Floor) | 2.6 ft × 3.5 ft |
| Saw Angle | +45° to 90° to -45° |
| Round Pipe | 114 mm |
| Square Pipe | 100 × 100 mm |
| Round Bar (MS) | 50 mm |
| Square Bar (MS) | 50 × 50 mm |
| UP TO W.T. / UP TO OD | 0.8 | 2.0 | 4.0 | 6.0 | 9.0 |
|---|---|---|---|---|---|
| 25 | OK | OK | OK | OK | OK |
| 50 | OK | OK | OK | OK | OK |
| 70 | OK | OK | OK | OK | Max. Cutting Capacity |
| 90 | OK | OK | OK | Max. Cutting Capacity | NOT POSSIBLE |
| 110 | OK | OK | OK | Max. Cutting Capacity | NOT POSSIBLE |
