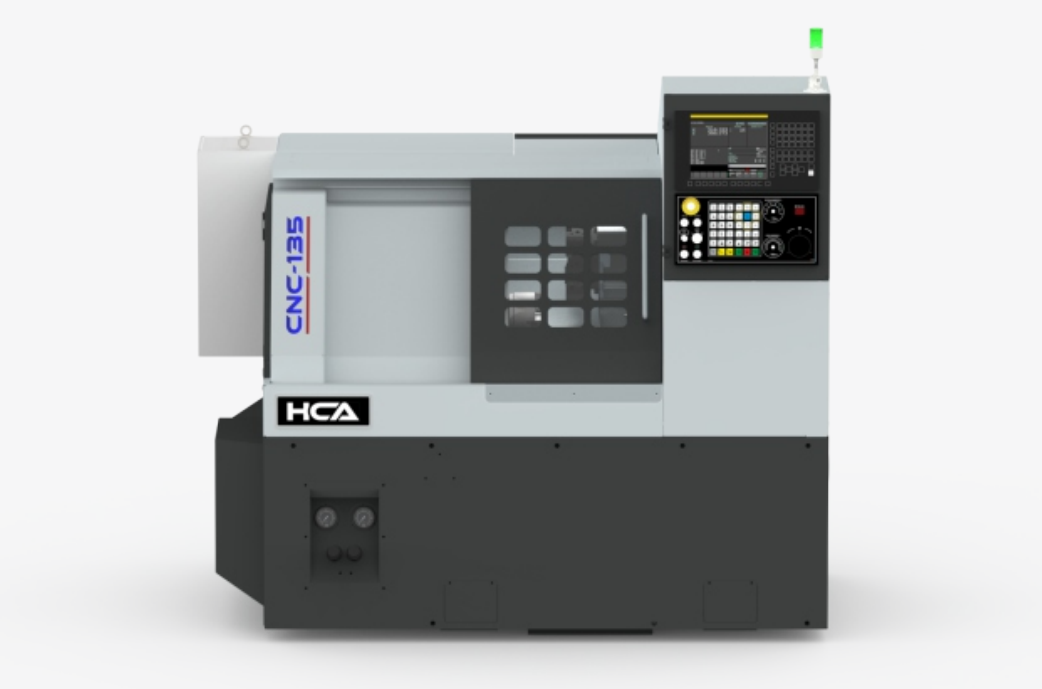

The CNC-135 Series is a compact and precision-engineered CNC machine designed for high-performance machining within a small footprint of 1790mm x 1220mm. It features a robust FG300 structure for enhanced stability, laser-calibrated axes ensuring accuracy under 10 microns, and a versatile servo turret available in 8 or 12 stations. With a maximum turning diameter of 150mm and extended X and Z-axis travels of 115mm and 200mm, respectively, it excels in handling a wide range of materials, including aluminum, titanium, and steel. Equipped with a programmable tailstock, precision-ground ball screws, and linear motion guideways, this machine ensures exceptional accuracy, efficiency, and reliability for diverse machining applications.
Technical Specifications
| Particulars | Unit | Value |
|---|---|---|
| Swing Over Bed | mm | 320 |
| Standard Turning Dia. | mm | 135 |
| Max. Turning Dia. | mm | 150 |
| Max. Turning Length (From Chuck Face) | mm | 170 |
| Slides | ||
| X-Axis Travel | mm | 115 |
| Z-Axis Travel | mm | 200 |
| Rapid Feed (X & Z) | m/min | 20 |
| Main Spindle | ||
| Spindle Motor | kW | 3.7 / 5.5 |
| Max. Spindle RPM | rpm | 3500 |
| Spindle Nose | A2-4A | |
| Spindle Bore | mm | 30 |
| Max. Bar Capacity | mm | 20 |
| Chuck Size | 135 | |
| Turret | ||
| No. of Stations | 8 / 12 | |
| Max. Boring Bar Dia. | mm | 25 |
| Tool Size (Cross Sectional) | mm | 20x20 / 16x16 |
| Tailstock | ||
| Quill Dia. | mm | 50 |
| Quill Taper | MT-4 | |
| Quill Stroke | mm | 120 |
| Adjustable Thrust | kgf | 300 |
| Accuracy | ||
| Positioning Accuracy | mm | 0.010 |
| Repeatability | mm | 0.005 |
| Other Data | ||
| Machine Weight (Approx.) | kg | 2100 |
| Machine Dimensions (W × L × H) | mm | 1790 × 1220 × 1630 |
