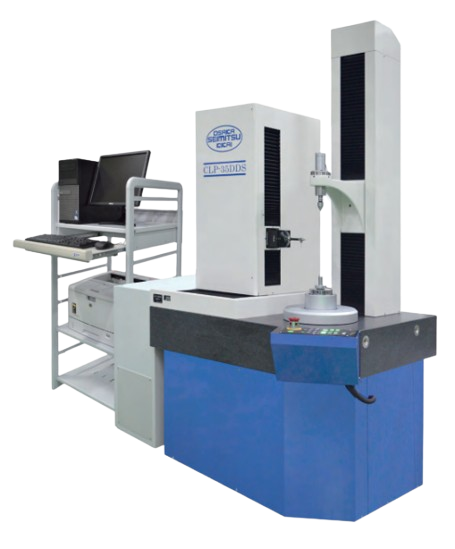

A CNC Gear Measuring Machine is a high-precision inspection system designed to measure and analyze the geometric accuracy of gears. It uses advanced Computer Numerical Control (CNC) technology to ensure reliable, repeatable, and automated measurement processes.
This machine is capable of evaluating key gear parameters such as profile, lead, pitch, runout, tooth thickness, and helix angle, ensuring that gears meet strict quality standards and performance requirements.
Equipped with modern software and high-resolution probes, CNC gear measuring machines provide real-time data analysis, graphical reports, and error detection, making them essential in industries like automotive, aerospace, heavy machinery, and manufacturing.
Technical Specifications
| CLP-35DDS/45DDS | CLP-85DDS | |
|---|---|---|
|
測定項目 Measuring item |
歯形・はすば歯車の歯形・歯すじ誤差、円周誤差、歯当り誤差、 歯幅ピッチ誤差（単一、隣接及び累積）および振れ Tooth profile, lead, pitch (single, adjacent and cumulative), and runout for spur and helical gear (Incl. internal gear) |
|
|
標準ソフトウェア Standard software |
|
|
| 測定モジュール Module |
m0.5～12 | m1～12 (～25) |
| 測定歯数 Number of teeth |
10～500 | |
| 測定歯車外径 Gear outer diameter |
Max φ350mm / φ450mm | Max φ850mm |
| 測定基礎円径 Base diameter |
0～φ300 / 0～φ400 | 0～φ800 |
| 測定可能幅 Center distance |
Max 400mm | Max 600mm |
| 歯形測定タンジェント長 Tangent length for profile measurement |
±120mm | ±200mm |
| 測定ねじれ角（特別仕様にて） Helix angle |
0°～±65° (±65°～±90°) |
- |
| 測定歯車長（特別仕様にて） Measurement length |
50～500mm (50～800mm) |
60～800mm |
| 測定歯車重量 Gear weight |
Max300kg | Max500kg |
| 分解能 Resolution |
0.0001 mm | |
| 電圧 Power supply |
AC 100V ±4% | AC200V ±4% |
| 容量 Capacitance |
2KVA | 3KVA |
| 機械重量 Machine weight |
2.0ton | 3.5ton |
| 機械寸法 Dimensions (W×D×H) |
1251×1059×1899 (1251×1059×2199) |
1875×1399×2160 |
※3Dプローブ使用時には仕様が変更になる可能性があります。詳細はご相談ください。
With 3D probe, above specification is subject to change. Please get contact us for the
detail.
