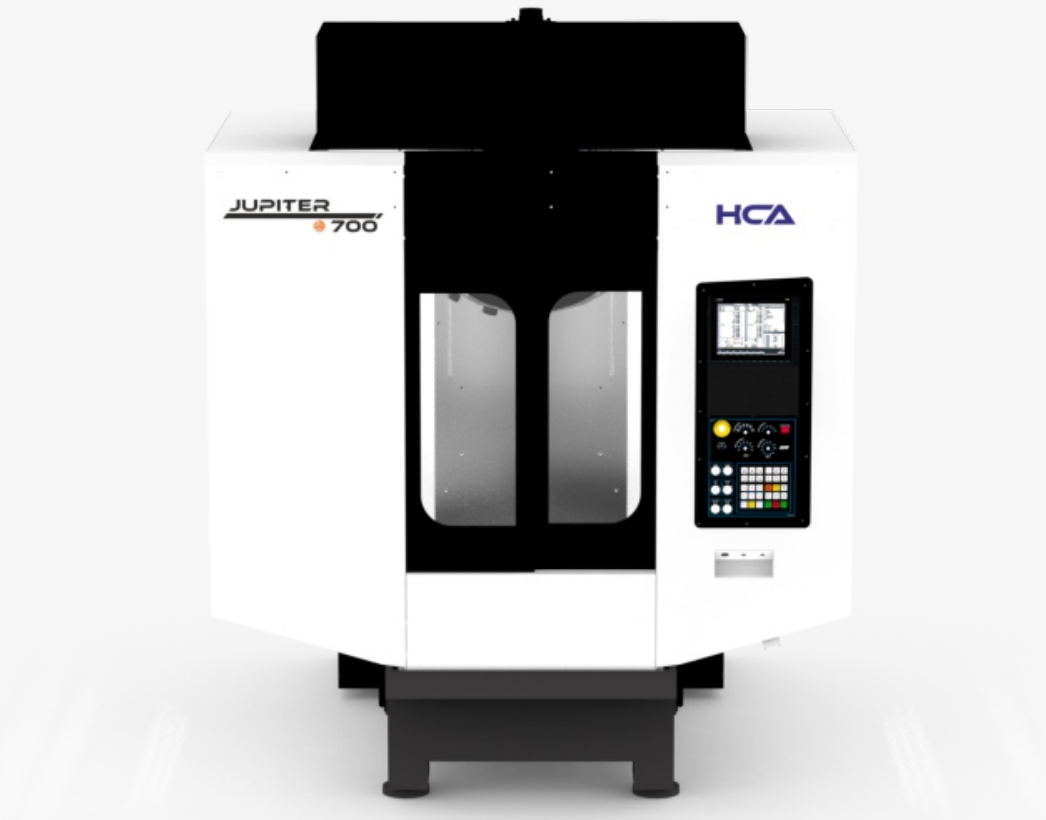

The JUPITER-700 is a versatile and high-precision machining center designed for efficiency and adaptability. It features a robust structure with high-precision LM guideways, ball screws, and a direct-drive spindle offering speeds up to 10,000 rpm, ensuring smooth operation and exceptional positional accuracy. With a spacious 800 x 400 mm table and extended travel of 700 x 400 x 300 mm along the X, Y, and Z axes, it accommodates a wide range of machining tasks. Its 21-tool bidirectional automatic tool changer and optional rotary table for synchronized 4th and 5th-axis operations enhance productivity and flexibility. A high-performance coolant system, large-capacity chip tray, and user-friendly Fanuc Oi MF Plus or Mitsubishi M80V controls ensure reliable performance, making the JUPITER-700 ideal for precision-driven applications.
Technical Specifications
| Particulars | Unit | Value |
|---|---|---|
| X Travel | mm | 700 |
| Y Travel | mm | 400 |
| Z Travel | mm | 300 |
| Spindle Face to Table Top Dist. | mm | 180 – 480 |
| Rapid Traverse (X/Y/Z) | m/min | 50 / 50 / 56 |
| Table | ||
| Table Size | mm | 800 × 400 |
| T-Slot Dimension | mm | 3 × 14 × 100 |
| Max. Load | kgf | 350 |
| Main Spindle | ||
| Speed Range | rpm | 0 – 10000 |
| Rated Power | kW | 3.7 / 5.5 / 7.5 |
| Spindle Nose | BT-30 | |
| Spindle Type | Direct Drive | |
| Automatic Tool Changer | ||
| No. of Tools | 21 | |
| ATC Type | Swivel Type | |
| Tool Selection Method | Random Shortcut Method | |
| Max. Tool Dia. | mm | 50 |
| Max. Tool Weight | kg | 3 |
| Accuracy | ||
| Positioning Accuracy | mm | 0.010 |
| Repeatability | mm | 0.007 |
| Other Data | ||
| Machine Weight (Approx.) | kg | 3500 |
| Machine Dimensions (W × L × H) | mm | 2550 × 2060 × 2220 |
