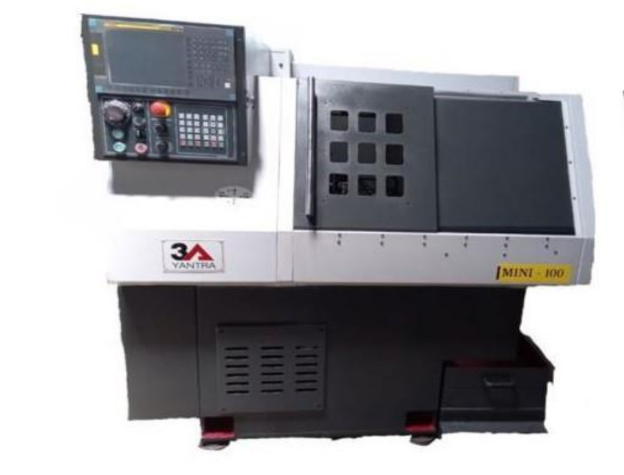

CNC Turn Mill Machines are equipped with multi-axis control and integrated spindle systems that enable simultaneous machining operations. The rigid machine structure ensures stability during high-speed operations, while advanced control systems provide precise synchronization between turning and milling functions.
These machines incorporate the latest technology such as direct-drive spindles and high-speed tool changers, allowing faster cycle times and improved surface finish. The milling spindle, supported by precision bearings, delivers high torque and accuracy for complex machining tasks.
Designed for versatility, CNC Turn Mill Machines reduce setup time, improve productivity, and ensure consistent quality across a wide range of components.
Specifications
| Particulars | Unit | MT-25 | MT-32 | MT-42 | MT-55 | |
|---|---|---|---|---|---|---|
| Capacity | Collet Chuck/Chuck | A-25 Collet / *Chuck-5" | A-32 Collet / *Chuck 6" | A-42 Collet / *Chuck 6" | A-62 Collet / *Chuck 8" | |
| Max. swing over bed | mm | 150 | 185 | 250 | 350 | |
| Max. Job length | mm | 50 / 80 | 65 / 100 | 75 / 130 | 75 / 160 | |
| Max. swing over slide | mm | 90 | 120 | 150 | 170 | |
| Spindle | Spindle bore | mm | 40 | 48 | 55 | 70 |
| Max. dia of through bore | mm | 25 | 25 | 46 | 62 | |
| Spindle Nose | A-2/5 | A-2/6 | A-2/6 | A-2/8 | ||
| Max spindle speed | rpm | 4000 / *5000 | 4000 / *5000 | 3000 / *4000 | 2000 / *3500 | |
| Spindle power | Kw | 3.7 / 5.5 | 3.7 / 5.5 | 5.5 / 7.5 | 7.5 / 11 | |
| Axis | Z-axis travel | mm | 220 | 250 | 250 | 300 |
| Z rapid traverse | m/min | 20 | 20 | 20 | 20 | |
| X-axis travel | mm | 300 | 350 | 400 / 500 | 500 / 600 | |
| X rapid traverse | m/min | 20 | 20 | 20 | 20 | |
| Y-axis travel | mm | 100 | 160 | 220 | 300 | |
| Tools & Turret | Type | Linear Gang | Linear Gang | Linear Gang / Turret | Linear Gang / Turret | |
| No. of tool stations | No. | 4-5 | 4-6 | 5-8 | 5-8 | |
| OD Tool Shank | mm | 20x20 | 20x20 | 20x20 | 20x20 | |
| ID Tool Shank | mm | 20 | 20 | 20 | 20 | |
| Coolant | Coolant Pump | Kw | 0.5 | 0.5 | 0.5 | 0.5 |
| Tank Capacity | Ltrs | 150 | 200 | 250 | 250 | |
| Electrical | Main supply | V/Ph/Hz | 415/3/50 | 415/3/50 | 415/3/50 | 415/3/50 |
| Connected load | Kw | 11 | 11 | 15 | 18 | |
| Dimension | Floor Area (L x W x H) | mm | 1250x1250x1800 | 1250x1250x1800 | 1400x1400x1900 | 1600x1400x1900 |
| Weight | Kgs | 1600 | 1800 | 2400 | 2800 |
