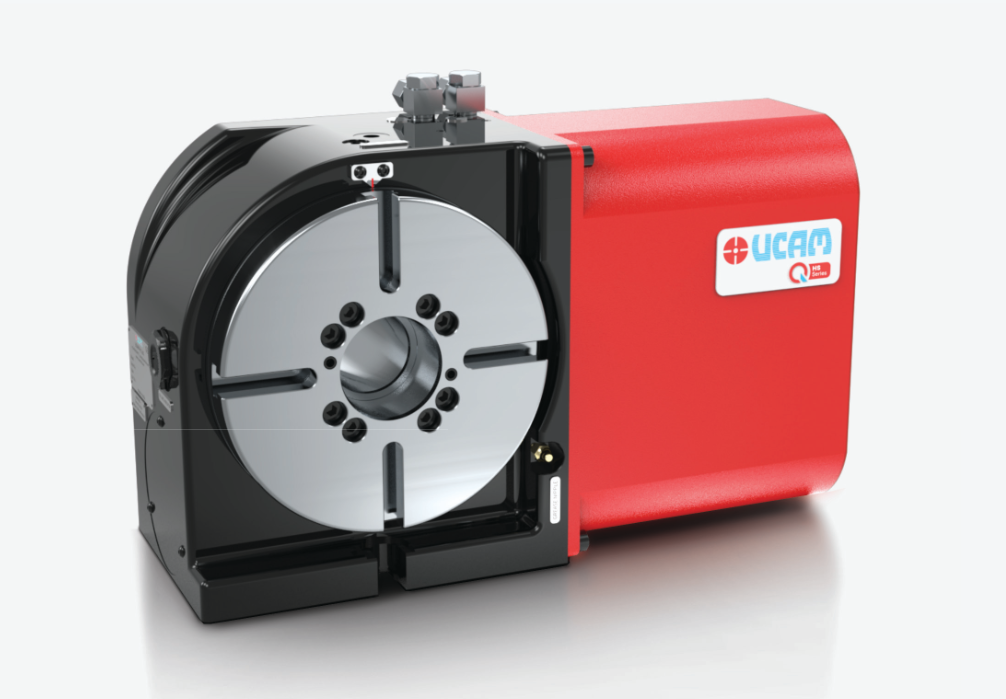

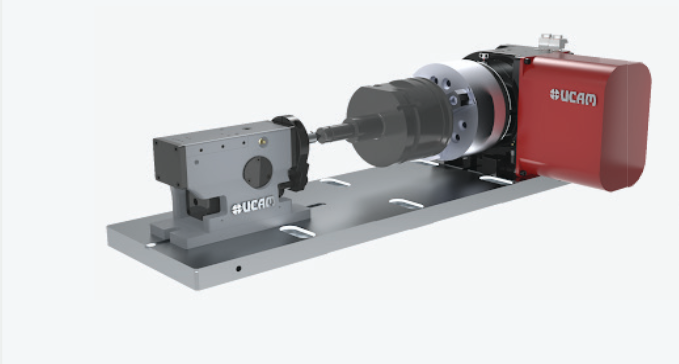

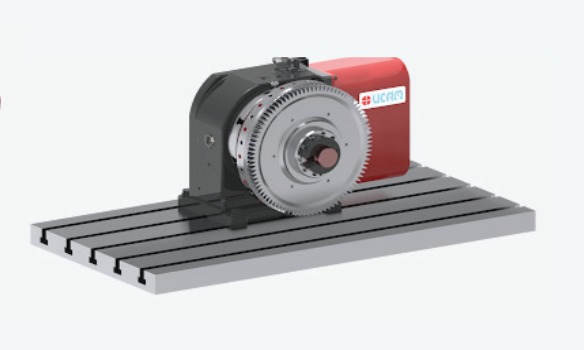

CNC Rotary Table The versatile URQ HS Series High-Speed CNC Rotary Table is expertly engineered for mass production. Designed for high- speed indexing and continuous cutting of small workpieces, it ensures seamless machine integration and superior performance in demanding industrial environments. Perfectly suited for high-precision tool manufacturing in aerospace, automotive, and agriculture industries
| Description | Units | URQ 180 | URQ 200HS | URQ 250HS |
|---|---|---|---|---|
| DIMENSION | ||||
| Turn Table Diameter | mm | Ø180 | Ø200 | Ø250 |
| Table Centre Height | mm | 135 | 140 | 160 |
| Centre Bore Diameter H7 | mm | Ø80 | Ø60 | Ø60 |
| T-Slot Size | mm | - | - | - |
| Reference Slots H7 | mm | 12 × 2 nos. | 12 × 2 nos. | 12 × 2 nos. |
| Other Slots H8 | mm | 12 × 2 nos. | 12 × 2 nos. | 12 × 6 nos. |
| Guide Block Width h6 | mm | 14 | 14 | 18 |
| OPERATIONAL | ||||
| Servo Motor Torque S | Nm | 2.5 | 4 | 5 |
| Speed Reduction Ratio | 1:90 | 1:72 | 1:90 | |
| Table Gyration Angle / Pulse | deg | 0.001° | 0.001° | 0.001° |
| Table Rotation Speed (Motor @4000rpm) Op1 | rpm | 55.56 | 55.56 | 44.44 |
| Table Rotation Speed (Motor @3000rpm) Op2 | rpm | 33.33 | 41.66 | 33.33 |
| LOAD & FORCE DATA | ||||
| Load Carrying Capacity - Horizontal | kg | 250 | 250 | 350 |
| Load Carrying Capacity - Vertical | kg | 125 | 130 | 175 |
| Load Carrying Capacity - Vertical with Tailstock | kg | 250 | 250 | 350 |
| Max Thrust Load - Horizontal | N | 12500 | 14000 | 20000 |
| Max Thrust Load - Vertical | N | 5000 | 5750 | 7000 |
| Tilting Moment - Horizontal (FxL) | Nm | 1100 | 1200 | 2000 |
| Tilting Moment - Vertical (FxL) | Nm | 700 | 800 | 1300 |
| Allowable Work Inertia % | kg.m² | 1 | 1.4 | 2.8 |
| Max Driving Torque SS | Nm | 170 | 200 | 300 |
| Clamp Torque - Pneumatic @ 5 Bar | Nm | 300 | 400 | 450 |
| Clamp Torque - Hydraulic @ 30 Bar | Nm | 500 | 900 | 1100 |
| ACCURACIES | ||||
| Indexing Accuracy | Arc Sec | ±15" | ±15" | ±15" |
| Repeatability | Arc Sec | 4" | 4" | 4" |
| OVERALL WEIGHT | ||||
| Net Weight | kg | 43 | 58 | 88 |
Standard Features
Compact and Lightweight
Compact and lightweight design enable Q series Tilting Rotary Table to fit in any small size VMC
High Speed Indexing
Q Series HS Rotary Table designed with low gear ratio for high speed indexing to reduce the cycle time and increase the productivity, which make this Rotary Table best pair with drill tap center and VMC
Pneumatic and Hydraulic Clamping
Q Series Rotary Table is available with both pneumatic and hydraulic clamping, which enable customer choose clamping method based on their application
Easy Installation
The user friendly design of servo motor mounting and electrical routing make Q series tilting table installation quick and effortless
Ready to Fit Rotary Union
Q Series Rotary Table is designed to adopt a 4 line rotary union any time after purchase and can be fitted at customer field
IP65 Protection
Q Series is designed for IP65 protection which enable customer to use the Rotary Table in heavy coolant and machining environment
