CNC Sliding Head Lathe Machines operate with a sliding headstock mechanism, where the bar stock moves along the Z-axis while being supported by a guide bush. This design minimizes deflection and ensures exceptional machining accuracy, even for long and slender components.
Equipped with multi-axis control and multiple tool stations, these machines enable simultaneous machining operations, significantly reducing cycle time and improving productivity. Advanced CNC control systems ensure precise synchronization of all axes for consistent and repeatable results..
The machine structure is engineered for high rigidity and stability, while high-speed spindles and precision tooling systems deliver excellent performance across a wide range of materials.
Specifications

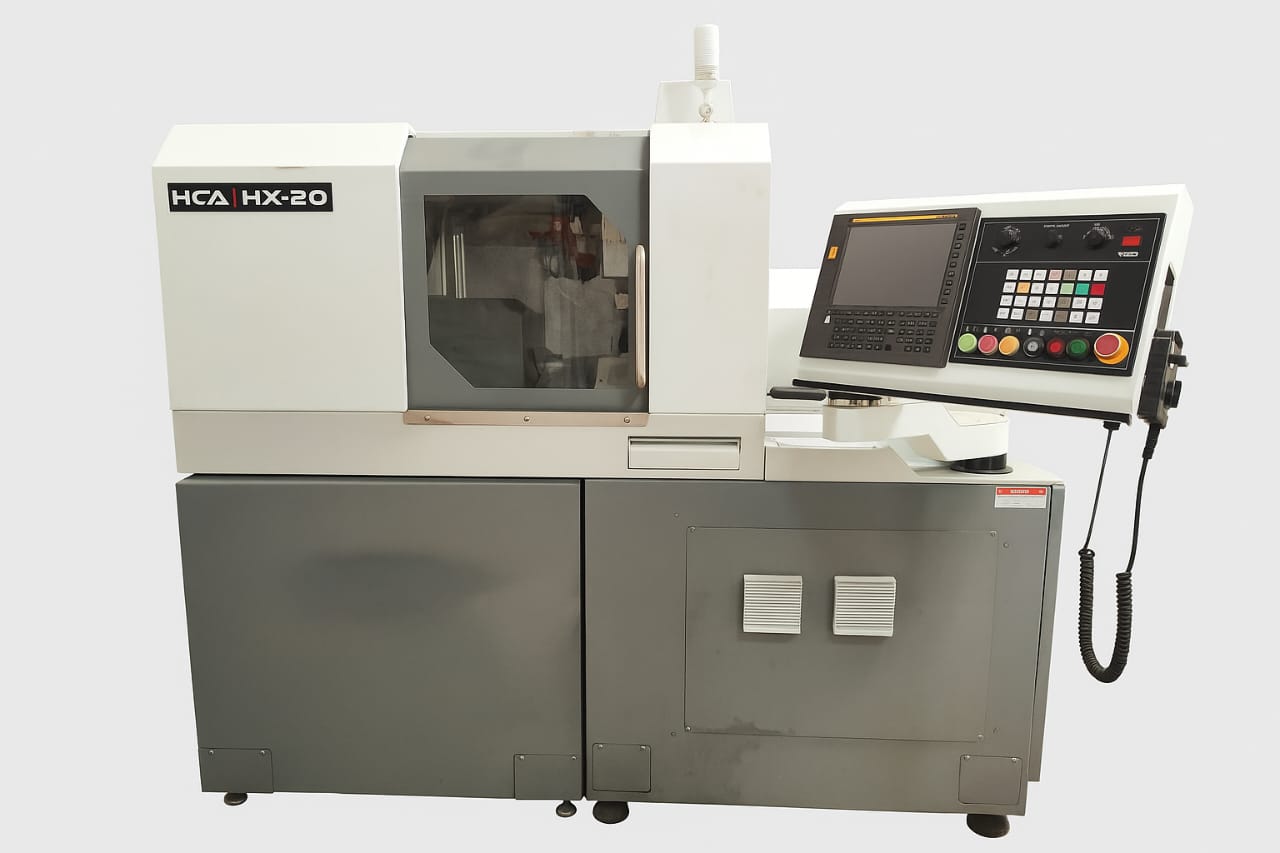

- Variants HX 20 / 25
- Main Spindle Speed Max. 8000 rpm
- Number of Tools 21
- Main Spindle Collet Chuck TF25 (TF30: Ø25mm)
- Axis Rapid Traverse 32 m/min (Except X1)
- Spindle Drive 2.2 / 3.7 kW
- Tool Spindle Drive 0.75 kW
- Machine Dimensions (W × L × H) 2220 × 1250 × 1840 mm
